Frequency Inverters for motor-mounting or wall-mounting

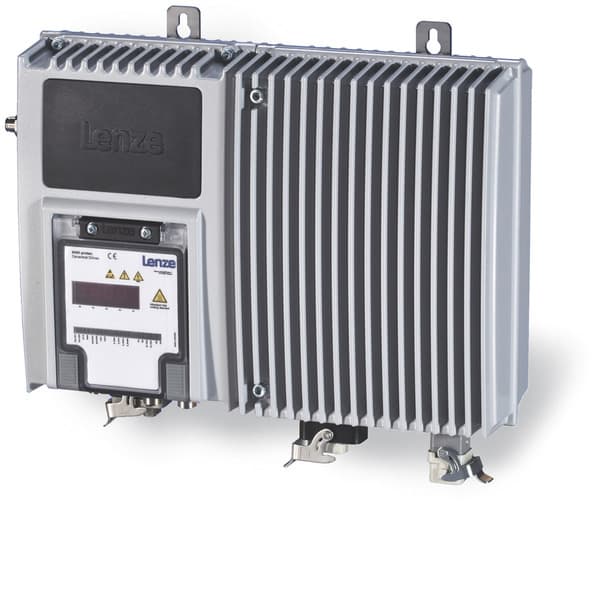

8400 protec frequency inverters

Decentralized 8400 protec frequency inverters suitable for wall mounting with pluggable connection system.

• Line voltage: 3 AC 400/500 V, 1.0 to 10.05 Hp (0.75 to 7.5 kW), 2.4 to 16.0 A

Particularly suitable for: scissor lift tables in the field of intralogistics and automotive industry.

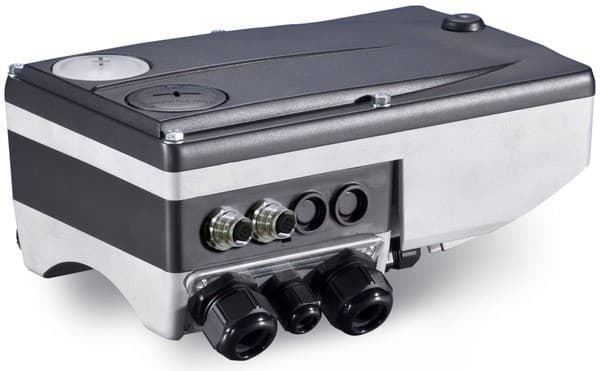

8400 motec frequency inverters

Decentralized 8400 motec frequency inverters mounted directly on the motor or to the wall.

• Line voltage: 3 AC 400/480 V, 0.50 to 10 Hp (0.37 to 7.5 kW), 1.3 to 16.5 A

Particularly suitable for: Traveling and conveyor drives in the field of intralogistics, fans and pump drives.

IE2 MH three-phase AC motors for inverter operation

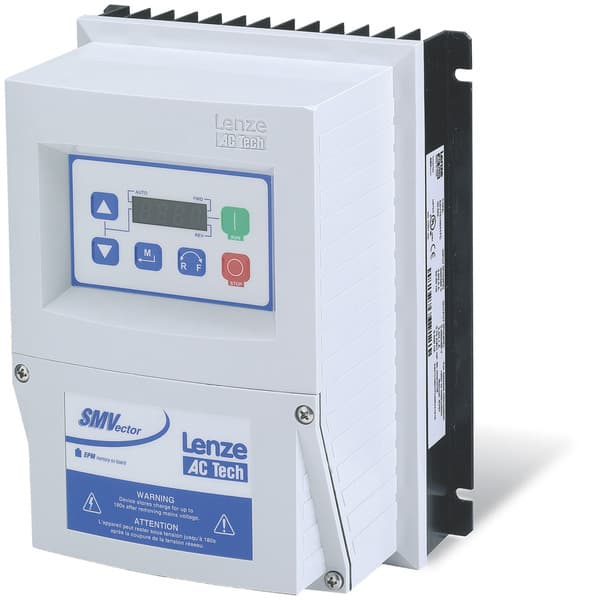

Decentralized SMVector NEMA 4X (IP65) frequency inverters suitable for wall mounting.

• Line voltage: 1 AC 120/240 V, 0.50 to 1.5 Hp (0.37 to 1.1 kW), 2.4 to 6 A
• Line voltage: 1/3 AC 200/240 V, 0.50 to 3.0 Hp (0.37 to 2.2 kW), 2.4 to 9.6 A
• Line voltage: 3 AC 200/240 V, 5.36 to 20.0 Hp (4.0 to 15 kW), 16.5 to 54 A
• Line voltage: 3 AC 400/480 V, 0.50 to 30.0 Hp (0.37 to 22 kW), 1.1 to 46 A
• Line voltage: 3 AC 600 V, 1.0 to 30.0 Hp (0.75 to 22 kW), 1.7 to 32 A

Particularly suitable for: Traveling and conveyor drives in the field of intralogistics, fans and pump drives

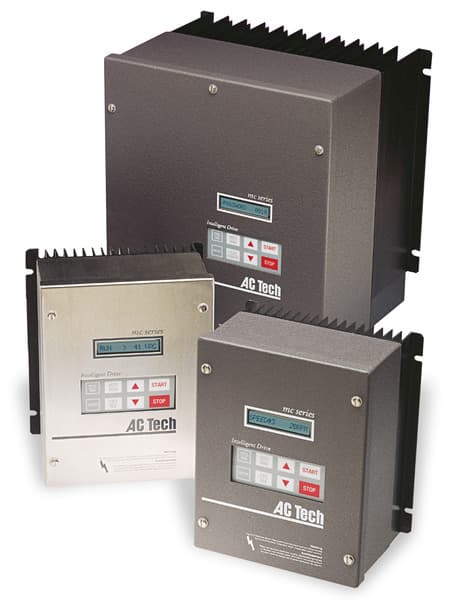

MC series frequency inverters

The MC series frequency inverters are built in rugged steel enclosures that hold up to daily life on the factory floor.

• Inverter enclosed V/f control (Constant Torque). Output power: ¼ HP to 150 HP (0.18 to 110 kW)

This constant horsepower drive can be set up for simple applications requiring ramped start, ramped stop and speed control to demanding applications that require PID set-point control and many other functions.
