Servo Inverters for control cabinet installation

frequency-servo-inverters/lenze/servo-cabinet/i950

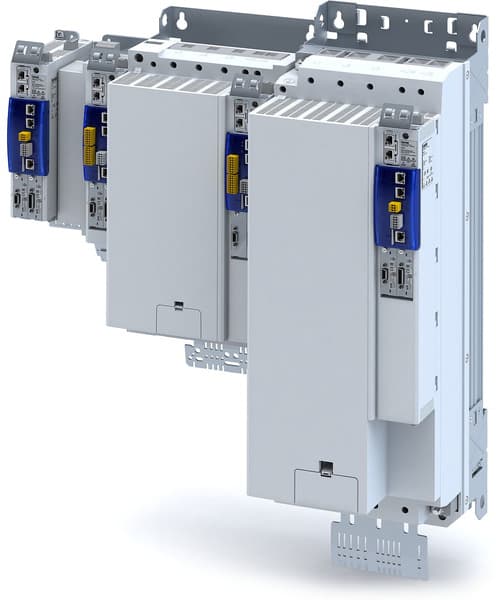

i950 series servo inverters

The new i950 servo inverter that we have added to our automation system fits smoothly into our automation platform with which it is completely compatible.The same architecture, the same engineering and use of the same application software dissolve the boundaries between drive-based and controller-based automation.The "FAST" application software toolbox becomes usable for all products. With FAST, we make a lot of things easier for the customer as the FAST applications of the i950 can be put to use immediately and can be adapted to the respective machine task by means of parameterisation alone. If necessary, however, they can be adapted and extended very easily according to specific customer requirements.In addition, the i950 servo inverter enhances the performance of the i700 servo inverter in our controller-based system in the range of 22 to 110 kW
frequency-servo-inverters/lenze/servo-cabinet/i700

i700 series servo inverters

i700 series servo inverters for controlled, dynamic motion.
  • Line voltage: 3 AC 400/480 V, 0.5 to 60 Hp (0.37 to 45 kW), 1.1 to 88 A
  • Single axis: 1.0 to 20.0 Hp (0.75 to 15 kW), 2.5 to 32 A
  • Multi axis: 1.0 to 10 Hp (0.75 to 7.5 kW), 2.5 to 16 A
Particularly suitable for: handling and packaging machines and robotic applications
frequency-servo-inverters/lenze/servo-cabinet/9400

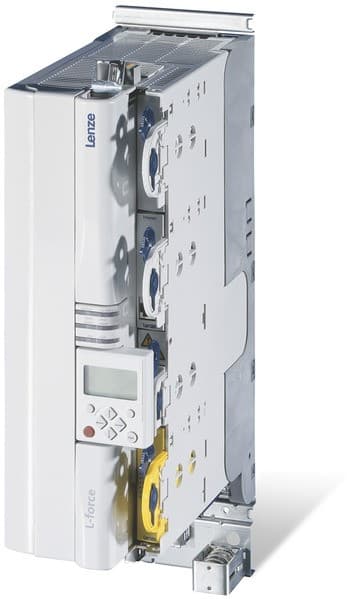

9400 series servo inverters

9400 series servo inverters for controlled, dynamic motion.
  • Single Drives: 0.50 to 321.84 Hp (0.37 to 240 kW), 1.5 to 460 A
  • Multi Drives: 0.50 to 40 Hp (0.37 to 30 kW), 1.5 to 59 AA
Particularly suitable for: processing of continuous material in the packaging industry, perforating paper webs in the printing industry, winding in the textile industry, and storage technology in the field of intralogistics.
