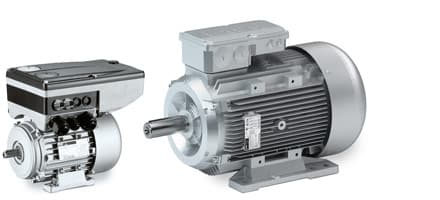

Lenze Inverter-operated three-phase AC motors

Perfect operation, open or closed-loop controlledInverter-operated three-phase AC motors for a wide range of tasks, covering a power range from 0.16 to 60 Hp (0.12 to 45 kW). These drives come in different efficiency classes and can be used for the versions required for open or closed-loop controlled inverter operation.

MF three-phase AC motors optimized for inverter operation

Energy-efficient, inverter-optimized MF three-phase AC motor for variable motion.

Torque range: 13.54 to 524.64 lb-in (1.53 to 59.2 Nm)
Power range: 0.74 to 29.50 Hp (0.55 to 22 kW)

Particularly suitable for tasks that demand wide range of settings with minimal sizes

IE3 m550-P three-phase AC motors for inverter operation

Energy efficient m550-P three-phase AC motor (IE3) for constant and variable motion

Torque range: 4.9 to 290 Nm
Power range: 0.75 to 45 kW

Suitable for inverter and energy efficient mains operation

IE2 MH three-phase AC motors for inverter operation

Energy efficient MH three-phase AC motor (IE2) for constant and variable motion.

Torque range: 45 to 2567 lb-in (5.08 to 290 Nm)
Power range: 1.0 to 60 Hp (0.75 to 45 kW)

Suitable for inverter and energy efficient mains operation.

IE1 MD three-phase AC motors for inverter operation

MD three-phase AC motor (IE1) for constant and variable motion.

Torque range: 7.10 to 1274.51 lb-in (0.8 to 144 Nm)
Power range: 0.16 to 29.5 Hp (0.12 to 22 kW)

Suitable for inverter and mains operation.
