Lenze Servo Motors

For precise and demanding motion sequencesServo motors are designed for all applications requiring precision and dynamic performance. Our servo motors have been designed to work in perfect harmony with our inverters. Such a combination results in exact, recurring motion sequences delivered by perfectly coordinated return systems. Depending on the application and torque requirements, we provide both asynchronous and synchronous motors.

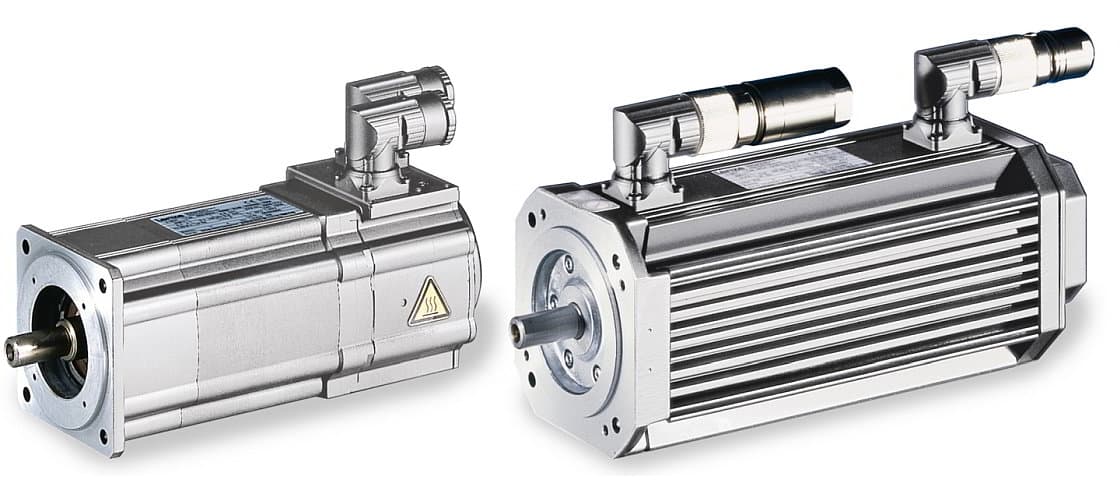

MCS synchronous servo motors

Synchronous servo motor for precisely controlled motion.

Torque range: 4.43 to 1682 lb-in (0.5 to 190 Nm)
Power range: 0.33 to 21 Hp (0.25 to 15.8 kW)

Particularly suitable for applications that require high dynamic performance, precision, and minimal dimensions.

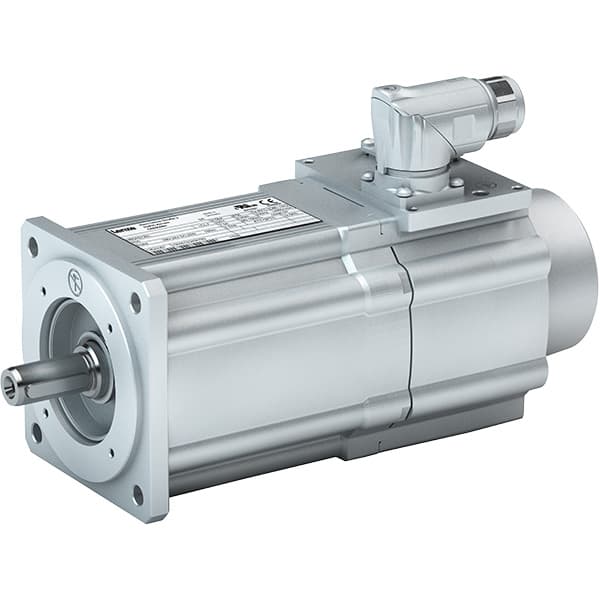

MCM synchronous servo motors

The compact MCM synchronous servo motor for positioning, robotics, packaging technology and handling system applications.

Torque range: 5.31 to 233.66 lb-in (0.6 to 26.4 Nm)
Power range: 0.25 to 3.45 Hp (0.19 to 2.5 kW)

In conjunction with the Servo Inverters i700, Servo Drives 9400 and Inverter Drives 8400 TopLine, it provides high-performance drive solutions.

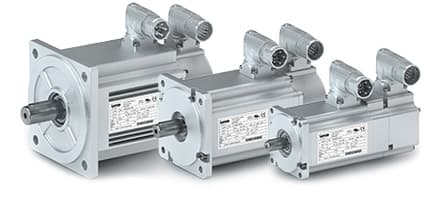

M850 synchronous servo motors

The compact m850 synchronous servo motors for positioning, robotics, packaging technology and handling system applications.

Torque range: 4.8 to 200 Nm
Power range: 2.0 to 9.2 kW

In conjunction with the Servo Inverter i700, Servo Drives 9400 and Inverter Drives 8400 TopLine, it provides high performance drive solutions.

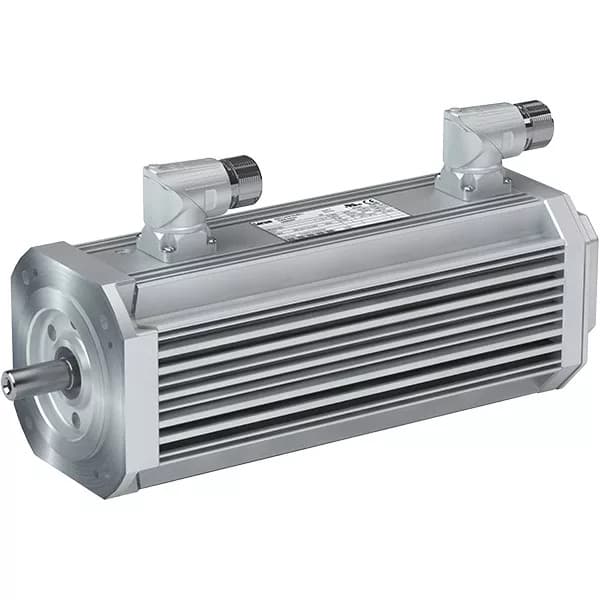

MDxKS synchronous servo motors

The compact m850 synchronous servo motors for positioning, robotics, packaging technology and handling system applications.

Torque range: 24.8 to 460.23 lb-in (2.8 to 52 Nm)
Power range: 1.5 to 7.9 Hp (1.1 to 5.9 kW)

Particularly suitable for applications that demand the best possible dynamic performance.

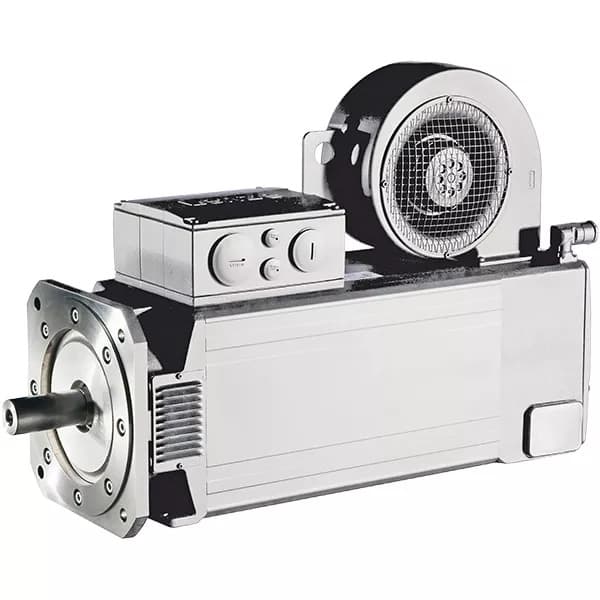

MQA Asynchronous servo motors

Naturally ventilated MQA asynchronous servo motor for precisely controlled motion

Torque range: 584 to 9736 lb-in (66 to 1100 Nm)
Power range: 14 to 80.75 Hp (10.6 to 60.2 kW)

Particularly suitable for applications with heavy motor demands.

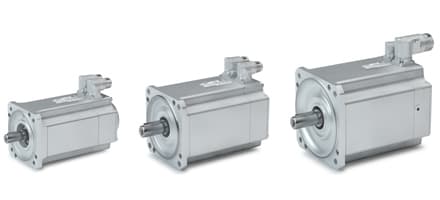

MCA Asynchronous servo motors

Asynchronous servo motor for precisely controlled motion

Torque range: 17.70 to 9736 lb-in (2.0 to 1,100 Nm)
Power range: 1.07 to 72 Hp (0.8 to 53.8 kW)

Particularly suitable for environments which require minimal dimensions and a high degree of engineered operational reliability.

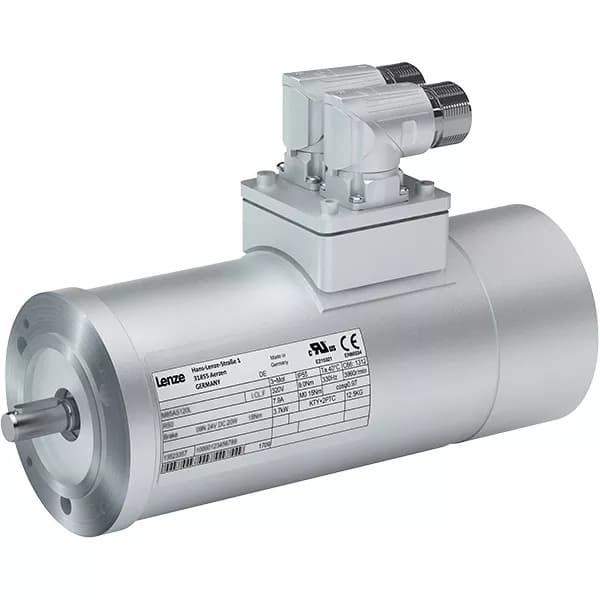

SDSGA Asynchronous servo motors

Asynchronous servo motor for precisely controlled motion

Torque range: 2.40 to 16.82 lb-in (0.27 to 1.9 Nm)
Power range: 0.100 to 0.80 Hp (0.075 to 0.6 kW)

Particularly suitable for machine tasks where hygiene is critical.
